Radian ticks

Plot with radians from the basic_units mockup example package.

This example shows how the unit class can determine the tick locating, formatting and axis labeling.

This example requires basic_units.py

from basic_units import cos, degrees, radians

import matplotlib.pyplot as plt
import numpy as np

x = [val*radians for val in np.arange(0, 15, 0.01)]

fig, axs = plt.subplots(2)

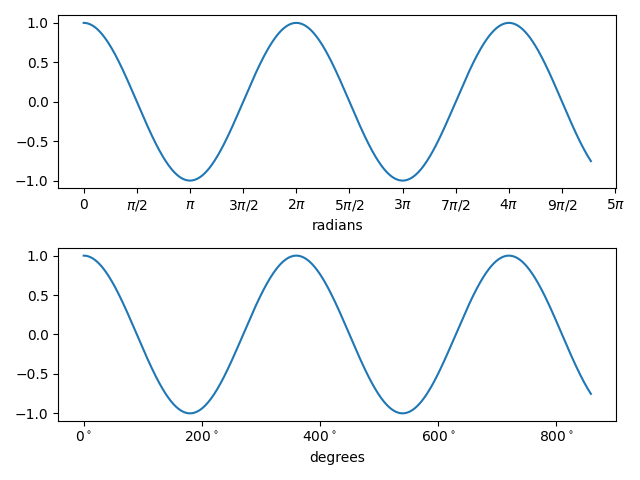

axs[0].plot(x, cos(x), xunits=radians)
axs[1].plot(x, cos(x), xunits=degrees)

fig.tight_layout()
plt.show()
