Scatter plot

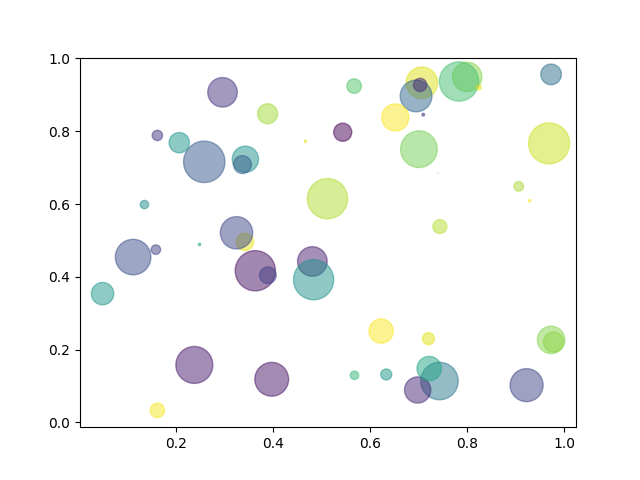

This example showcases a simple scatter plot.

import matplotlib.pyplot as plt
import numpy as np

# Fixing random state for reproducibility
np.random.seed(19680801)


N = 50
x = np.random.rand(N)
y = np.random.rand(N)
colors = np.random.rand(N)
area = (30 * np.random.rand(N))**2  # 0 to 15 point radii

plt.scatter(x, y, s=area, c=colors, alpha=0.5)
plt.show()

References

The use of the following functions, methods, classes and modules is shown in this example:

• matplotlib.axes.Axes.scatter / matplotlib.pyplot.scatter
