Geographic Projections#
This shows 4 possible geographic projections. Cartopy supports more projections.
import matplotlib.pyplot as plt

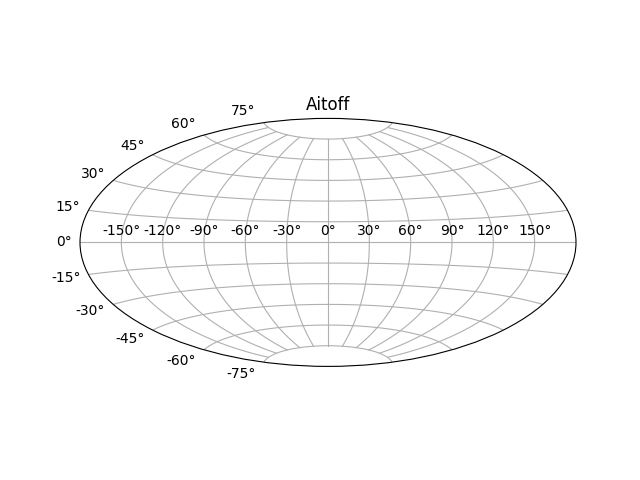

plt.figure()
plt.subplot(projection="aitoff")
plt.title("Aitoff")
plt.grid(True)
plt.figure()
plt.subplot(projection="hammer")
plt.title("Hammer")
plt.grid(True)

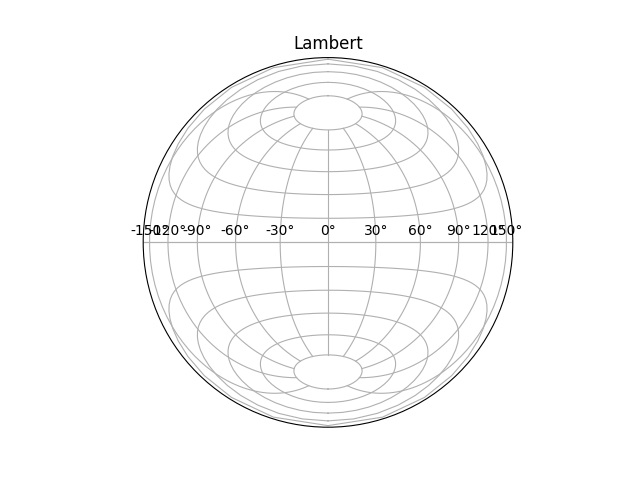

plt.figure()
plt.subplot(projection="lambert")
plt.title("Lambert")
plt.grid(True)

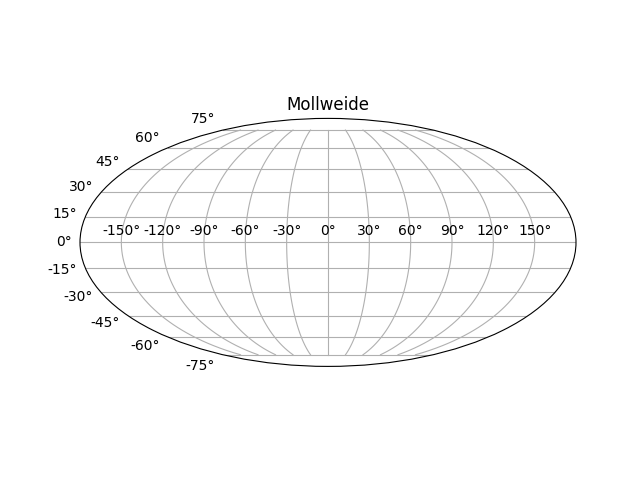

plt.figure()
plt.subplot(projection="mollweide")
plt.title("Mollweide")
plt.grid(True)
plt.show()
