Plotting with keywords

Some data structures, like dict, structured numpy array or pandas.DataFrame provide access to labelled data via string index access data[key].

For these data types, Matplotlib supports passing the whole datastructure via the data keyword argument, and using the string names as plot function parameters, where you'd normally pass in your data.

import matplotlib.pyplot as plt
import numpy as np

np.random.seed(19680801)

data = {'a': np.arange(50),
        'c': np.random.randint(0, 50, 50),
        'd': np.random.randn(50)}
data['b'] = data['a'] + 10 * np.random.randn(50)
data['d'] = np.abs(data['d']) * 100

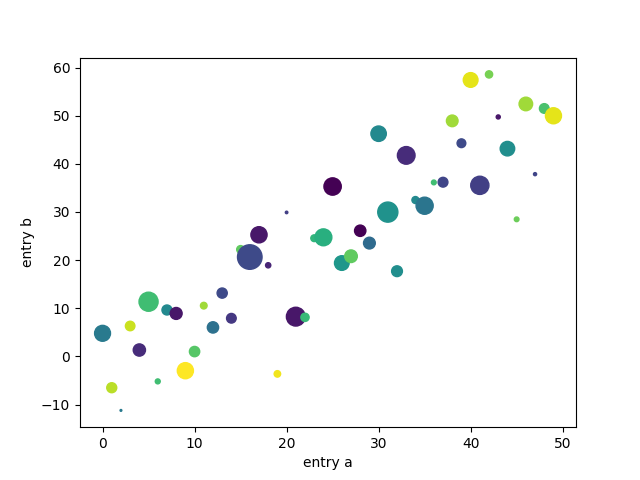

fig, ax = plt.subplots()
ax.scatter('a', 'b', c='c', s='d', data=data)
ax.set(xlabel='entry a', ylabel='entry b')
plt.show()
