pandas.DataFrame.plot.line

DataFrame.plot.line(self, x=None, y=None, **kwargs)

Plot Series or DataFrame as lines.

This function is useful to plot lines using DataFrame’s values as coordinates.

Parameters

xint or str, optional

Columns to use for the horizontal axis. Either the location or the label of the columns to be used. By default, it will use the DataFrame indices.

yint, str, or list of them, optional

The values to be plotted. Either the location or the label of the columns to be used. By default, it will use the remaining DataFrame numeric columns.

**kwargs

Keyword arguments to pass on to DataFrame.plot().

Returns

matplotlib.axes.Axes or numpy.ndarray

Return an ndarray when subplots=True.

See also

matplotlib.pyplot.plot

Plot y versus x as lines and/or markers.

Examples

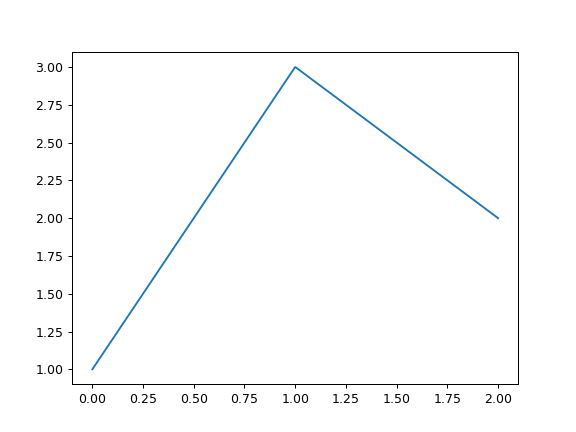

>>> s = pd.Series([1, 3, 2])
>>> s.plot.line()

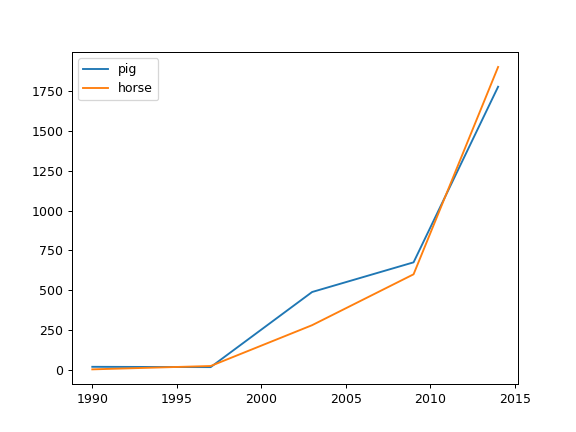

The following example shows the populations for some animals over the years.

>>> df = pd.DataFrame({
...    'pig': [20, 18, 489, 675, 1776],
...    'horse': [4, 25, 281, 600, 1900]
...    }, index=[1990, 1997, 2003, 2009, 2014])
>>> lines = df.plot.line()

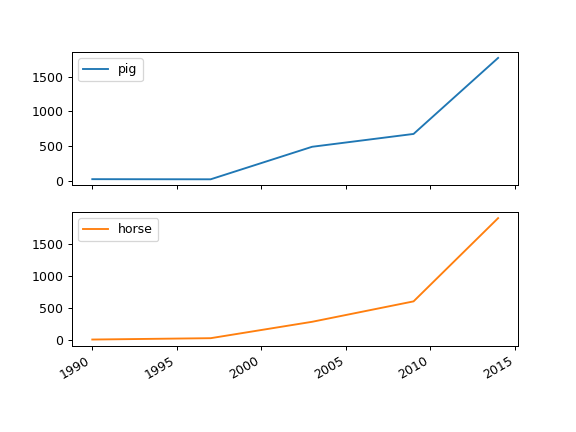

An example with subplots, so an array of axes is returned.

>>> axes = df.plot.line(subplots=True)
>>> type(axes)
<class 'numpy.ndarray'>

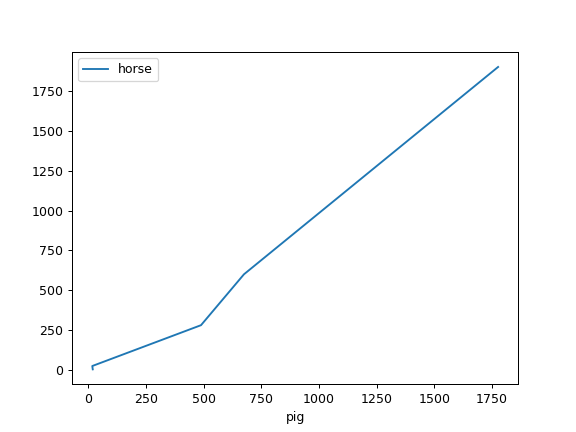

The following example shows the relationship between both populations.

>>> lines = df.plot.line(x='pig', y='horse')
