Tutorial: Linear algebra on n-dimensional arrays¶

Prerequisites¶

Before reading this tutorial, you should know a bit of Python. If you would like to refresh your memory, take a look at the Python tutorial.

If you want to be able to run the examples in this tutorial, you should also have matplotlib and SciPy installed on your computer.

Learner profile¶

This tutorial is for people who have a basic understanding of linear algebra and arrays in NumPy and want to understand how n-dimensional ( $n>=2$ ) arrays are represented and can be manipulated. In particular, if you don’t know how to apply common functions to n-dimensional arrays (without using for-loops), or if you want to understand axis and shape properties for n-dimensional arrays, this tutorial might be of help.

Learning Objectives¶

After this tutorial, you should be able to:

Understand the difference between one-, two- and n-dimensional arrays in NumPy;
Understand how to apply some linear algebra operations to n-dimensional arrays without using for-loops;
Understand axis and shape properties for n-dimensional arrays.

Content¶

In this tutorial, we will use a matrix decomposition from linear algebra, the Singular Value Decomposition, to generate a compressed approximation of an image. We’ll use the face image from the scipy.misc module:

>>> from scipy import misc
>>> img = misc.face()

Note

If you prefer, you can use your own image as you work through this tutorial. In order to transform your image into a NumPy array that can be manipulated, you can use the imread function from the matplotlib.pyplot submodule. Alternatively, you can use the imageio.imread function from the imageio library. Be aware that if you use your own image, you’ll likely need to adapt the steps below. For more information on how images are treated when converted to NumPy arrays, see A crash course on NumPy for images from the scikit-image documentation.

Now, img is a NumPy array, as we can see when using the type function:

>>> type(img)
<class 'numpy.ndarray'>

We can see the image using the matplotlib.pyplot.imshow function:

>>> import matplotlib.pyplot as plt
>>> plt.imshow(img)

Note

If you are executing the commands above in the IPython shell, it might be necessary to use the command plt.show() to show the image window.

Shape, axis and array properties¶

Note that, in linear algebra, the dimension of a vector refers to the number of entries in an array. In NumPy, it instead defines the number of axes. For example, a 1D array is a vector such as [1, 2, 3], a 2D array is a matrix, and so forth.

First, let’s check for the shape of the data in our array. Since this image is two-dimensional (the pixels in the image form a rectangle), we might expect a two-dimensional array to represent it (a matrix). However, using the shape property of this NumPy array gives us a different result:

>>> img.shape
(768, 1024, 3)

The output is a tuple with three elements, which means that this is a three-dimensional array. In fact, since this is a color image, and we have used the imread function to read it, the data is organized in three 2D arrays, representing color channels (in this case, red, green and blue - RGB). You can see this by looking at the shape above: it indicates that we have an array of 3 matrices, each having shape 768x1024.

Furthermore, using the ndim property of this array, we can see that

>>> img.ndim
3

NumPy refers to each dimension as an axis. Because of how imread works, the first index in the 3rd axis is the red pixel data for our image. We can access this by using the syntax

>>> img[:, :, 0]
array([[121, 138, 153, ..., 119, 131, 139],
       [ 89, 110, 130, ..., 118, 134, 146],
       [ 73,  94, 115, ..., 117, 133, 144],
       ...,
       [ 87,  94, 107, ..., 120, 119, 119],
       [ 85,  95, 112, ..., 121, 120, 120],
       [ 85,  97, 111, ..., 120, 119, 118]], dtype=uint8)

From the output above, we can see that every value in img[:,:,0] is an integer value between 0 and 255, representing the level of red in each corresponding image pixel (keep in mind that this might be different if you use your own image instead of scipy.misc.face).

As expected, this is a 768x1024 matrix:

>>> img[:, :, 0].shape
(768, 1024)

Since we are going to perform linear algebra operations on this data, it might be more interesting to have real numbers between 0 and 1 in each entry of the matrices to represent the RGB values. We can do that by setting

>>> img_array = img / 255

This operation, dividing an array by a scalar, works because of NumPy’s broadcasting rules). (Note that in real-world applications, it would be better to use, for example, the img_as_float utility function from scikit-image).

You can check that the above works by doing some tests; for example, inquiring about maximum and minimum values for this array:

>>> img_array.max(), img_array.min()
(1.0, 0.0)

or checking the type of data in the array:

>>> img_array.dtype
dtype('float64')

Note that we can assign each color channel to a separate matrix using the slice syntax:

>>> red_array = img_array[:, :, 0]
>>> green_array = img_array[:, :, 1]
>>> blue_array = img_array[:, :, 2]

Operations on an axis¶

It is possible to use methods from linear algebra to approximate an existing set of data. Here, we will use the SVD (Singular Value Decomposition) to try to rebuild an image that uses less singular value information than the original one, while still retaining some of its features.

Note

We will use NumPy’s linear algebra module, numpy.linalg, to perform the operations in this tutorial. Most of the linear algebra functions in this module can also be found in scipy.linalg, and users are encouraged to use the scipy module for real-world applications. However, it is currently not possible to apply linear algebra operations to n-dimensional arrays using the scipy.linalg module. For more information on this, check the scipy.linalg Reference.

To proceed, import the linear algebra submodule from NumPy:

>>> from numpy import linalg

In order to extract information from a given matrix, we can use the SVD to obtain 3 arrays which can be multiplied to obtain the original matrix. From the theory of linear algebra, given a matrix $A$ , the following product can be computed:

$U \Sigma V^T = A$

where $U$ and $V^T$ are square and $\Sigma$ is the same size as $A$ . $\Sigma$ is a diagonal matrix and contains the singular values of $A$ , organized from largest to smallest. These values are always non-negative and can be used as an indicator of the “importance” of some features represented by the matrix $A$ .

Let’s see how this works in practice with just one matrix first. Note that according to colorimetry, it is possible to obtain a fairly reasonable grayscale version of our color image if we apply the formula

$Y = 0.2126 R + 0.7152 G + 0.0722 B$

where $Y$ is the array representing the grayscale image, and $R, G$ and $B$ are the red, green and blue channel arrays we had originally. Notice we can use the @ operator (the matrix multiplication operator for NumPy arrays, see numpy.matmul) for this:

>>> img_gray = img_array @ [0.2126, 0.7152, 0.0722]

Now, img_gray has shape

>>> img_gray.shape
(768, 1024)

To see if this makes sense in our image, we should use a colormap from matplotlib corresponding to the color we wish to see in out image (otherwise, matplotlib will default to a colormap that does not correspond to the real data).

In our case, we are approximating the grayscale portion of the image, so we will use the colormap gray:

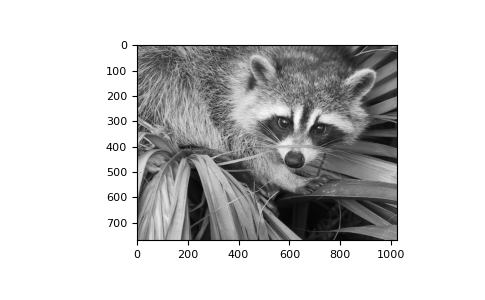

>>> plt.imshow(img_gray, cmap="gray")

Now, applying the linalg.svd function to this matrix, we obtain the following decomposition:

>>> U, s, Vt = linalg.svd(img_gray)

Note

If you are using your own image, this command might take a while to run, depending on the size of your image and your hardware. Don’t worry, this is normal! The SVD can be a pretty intensive computation.

Let’s check that this is what we expected:

>>> U.shape, s.shape, Vt.shape
((768, 768), (768,), (1024, 1024))

Note that s has a particular shape: it has only one dimension. This means that some linear algebra functions that expect 2d arrays might not work. For example, from the theory, one might expect s and Vt to be compatible for multiplication. However, this is not true as s does not have a second axis. Executing

>>> s @ Vt
Traceback (most recent call last):
  ...
ValueError: matmul: Input operand 1 has a mismatch in its core dimension 0,
with gufunc signature (n?,k),(k,m?)->(n?,m?) (size 1024 is different from
768)

results in a ValueError. This happens because having a one-dimensional array for s, in this case, is much more economic in practice than building a diagonal matrix with the same data. To reconstruct the original matrix, we can rebuild the diagonal matrix $\Sigma$ with the elements of s in its diagonal and with the appropriate dimensions for multiplying: in our case, $\Sigma$ should be 768x1024 since U is 768x768 and Vt is 1024x1024.

>>> import numpy as np
>>> Sigma = np.zeros((768, 1024))
>>> for i in range(768):
...     Sigma[i, i] = s[i]

Now, we want to check if the reconstructed U @ Sigma @ Vt is close to the original img_gray matrix.

Approximation¶

The linalg module includes a norm function, which computes the norm of a vector or matrix represented in a NumPy array. For example, from the SVD explanation above, we would expect the norm of the difference between img_gray and the reconstructed SVD product to be small. As expected, you should see something like

>>> linalg.norm(img_gray - U @ Sigma @ Vt)
1.3926466851808837e-12

(The actual result of this operation might be different depending on your architecture and linear algebra setup. Regardless, you should see a small number.)

We could also have used the numpy.allclose function to make sure the reconstructed product is, in fact, close to our original matrix (the difference between the two arrays is small):

>>> np.allclose(img_gray, U @ Sigma @ Vt)
True

To see if an approximation is reasonable, we can check the values in s:

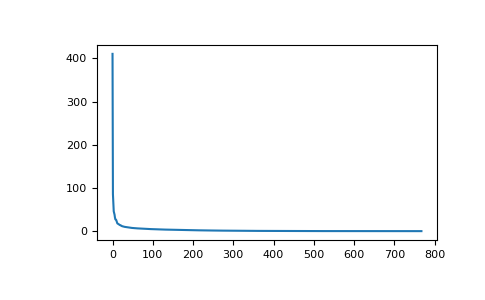

>>> plt.plot(s)

In the graph, we can see that although we have 768 singular values in s, most of those (after the 150th entry or so) are pretty small. So it might make sense to use only the information related to the first (say, 50) singular values to build a more economical approximation to our image.

The idea is to consider all but the first k singular values in Sigma (which are the same as in s) as zeros, keeping U and Vt intact, and computing the product of these matrices as the approximation.

For example, if we choose

>>> k = 10

we can build the approximation by doing

>>> approx = U @ Sigma[:, :k] @ Vt[:k, :]

Note that we had to use only the first k rows of Vt, since all other rows would be multiplied by the zeros corresponding to the singular values we eliminated from this approximation.

>>> plt.imshow(approx, cmap="gray")

Now, you can go ahead and repeat this experiment with other values of k, and each of your experiments should give you a slightly better (or worse) image depending on the value you choose.

Applying to all colors¶

Now we want to do the same kind of operation, but to all three colors. Our first instinct might be to repeat the same operation we did above to each color matrix individually. However, NumPy’s broadcasting takes care of this for us.

If our array has more than two dimensions, then the SVD can be applied to all axes at once. However, the linear algebra functions in NumPy expect to see an array of the form (N, M, M), where the first axis represents the number of matrices.

In our case,

>>> img_array.shape
(768, 1024, 3)

so we need to permutate the axis on this array to get a shape like (3, 768, 1024). Fortunately, the numpy.transpose function can do that for us:

np.transpose(x, axes=(i, j, k))

indicates that the axis will be reordered such that the final shape of the transposed array will be reordered according to the indices (i, j, k).

Let’s see how this goes for our array:

>>> img_array_transposed = np.transpose(img_array, (2, 0, 1))
>>> img_array_transposed.shape
(3, 768, 1024)

Now we are ready to apply the SVD:

>>> U, s, Vt = linalg.svd(img_array_transposed)

Finally, to obtain the full approximated image, we need to reassemble these matrices into the approximation. Now, note that

>>> U.shape, s.shape, Vt.shape
((3, 768, 768), (3, 768), (3, 1024, 1024))

To build the final approximation matrix, we must understand how multiplication across different axes works.

Products with n-dimensional arrays¶

If you have worked before with only one- or two-dimensional arrays in NumPy, you might use numpy.dot and numpy.matmul (or the @ operator) interchangeably. However, for n-dimensional arrays, they work in very different ways. For more details, check the documentation numpy.matmul.

Now, to build our approximation, we first need to make sure that our singular values are ready for multiplication, so we build our Sigma matrix similarly to what we did before. The Sigma array must have dimensions (3, 768, 1024). In order to add the singular values to the diagonal of Sigma, we will use the fill_diagonal function from NumPy, using each of the 3 rows in s as the diagonal for each of the 3 matrices in Sigma:

>>> Sigma = np.zeros((3, 768, 1024))
>>> for j in range(3):
...     np.fill_diagonal(Sigma[j, :, :], s[j, :])

Now, if we wish to rebuild the full SVD (with no approximation), we can do

>>> reconstructed = U @ Sigma @ Vt

Note that

>>> reconstructed.shape
(3, 768, 1024)

and

>>> plt.imshow(np.transpose(reconstructed, (1, 2, 0)))

should give you an image indistinguishable from the original one (although we may introduce floating point errors for this reconstruction). In fact, you might see a warning message saying “Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).” This is expected from the manipulation we just did on the original image.

Now, to do the approximation, we must choose only the first k singular values for each color channel. This can be done using the following syntax:

>>> approx_img = U @ Sigma[..., :k] @ Vt[..., :k, :]

You can see that we have selected only the first k components of the last axis for Sigma (this means that we have used only the first k columns of each of the three matrices in the stack), and that we have selected only the first k components in the second-to-last axis of Vt (this means we have selected only the first k rows from every matrix in the stack Vt and all columns). If you are unfamiliar with the ellipsis syntax, it is a placeholder for other axes. For more details, see the documentation on Indexing.

Now,

>>> approx_img.shape
(3, 768, 1024)

which is not the right shape for showing the image. Finally, reordering the axes back to our original shape of (768, 1024, 3), we can see our approximation:

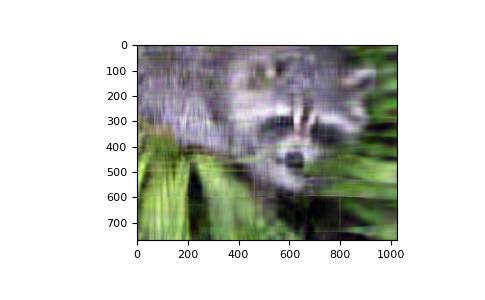

>>> plt.imshow(np.transpose(approx_img, (1, 2, 0)))

Even though the image is not as sharp, using a small number of k singular values (compared to the original set of 768 values), we can recover many of the distinguishing features from this image.

Final words¶

Of course, this is not the best method to approximate an image. However, there is, in fact, a result in linear algebra that says that the approximation we built above is the best we can get to the original matrix in terms of the norm of the difference. For more information, see G. H. Golub and C. F. Van Loan, Matrix Computations, Baltimore, MD, Johns Hopkins University Press, 1985.
